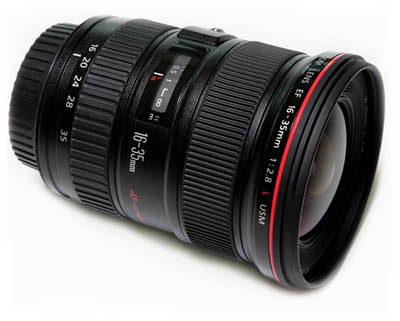

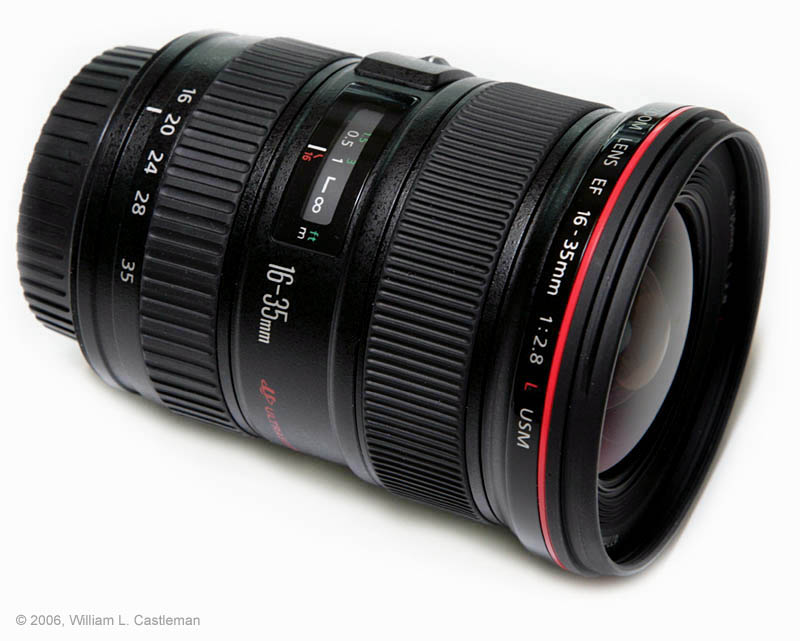

Canon EF 16-35mm f/2.8L
Performance Review
A Work in
Progress and Under Revision
This is an initial brief performance review of the EF
16-35mm f/2.8L lens. The major strengths of this lens over the EF
17-40mm f/4L lens are the obvious wider 16mm perspective and faster
f/2.8 aperture. The EF 17-40 generally gives slightly sharper edge
performance with less chromatic aberration than the EF 16-35. However,
differences are small. The greater widefield capabilities of the EF
16-35 L (108° diagonal field of view compared to 74° diagonal
field of view for the 17-40L) make the relatively minor differences in
corner sharpness and chromatic aberration a small price to pay for those
seek the widest possible ultrawide zoom performance. Summaries of
performance of the EF 16-35mm L and the EF 17-40 L on an EOS-1Ds Mark II
follow that include comparison with performance of the EF-S 10-22mm lens
on an EOS-20D. Lens Specification 18 June 2006 Note: This is a quick assessment of lens performance before going off to use the lens on a photo trip. Examples and more data will follow when I get the time in the next few months. This lens was run on a new lens with date code UT0812 (August, 2005 construction) |
Overall Summary of Lens Sharpness
17mm, 20mm, 24mm, 28mm, 35mm
Examples

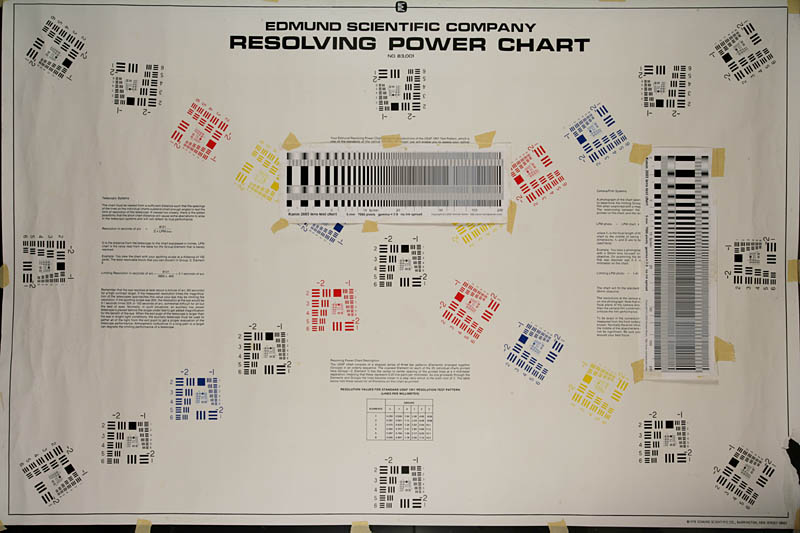

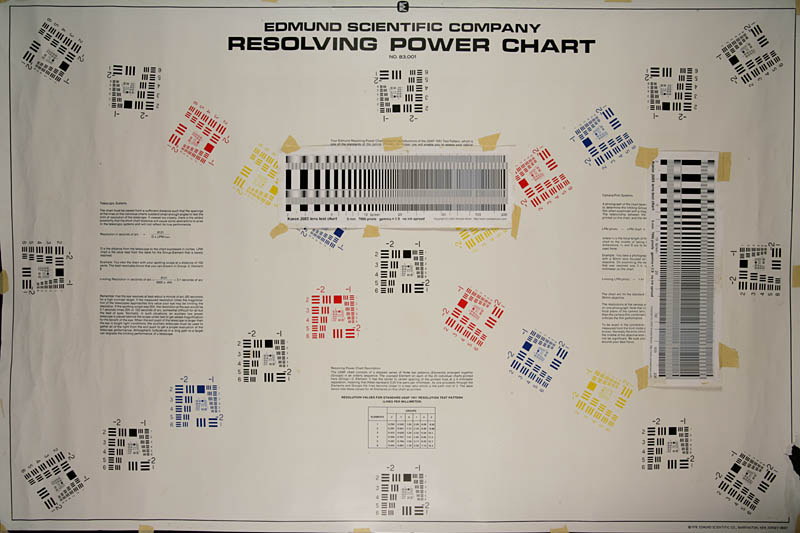

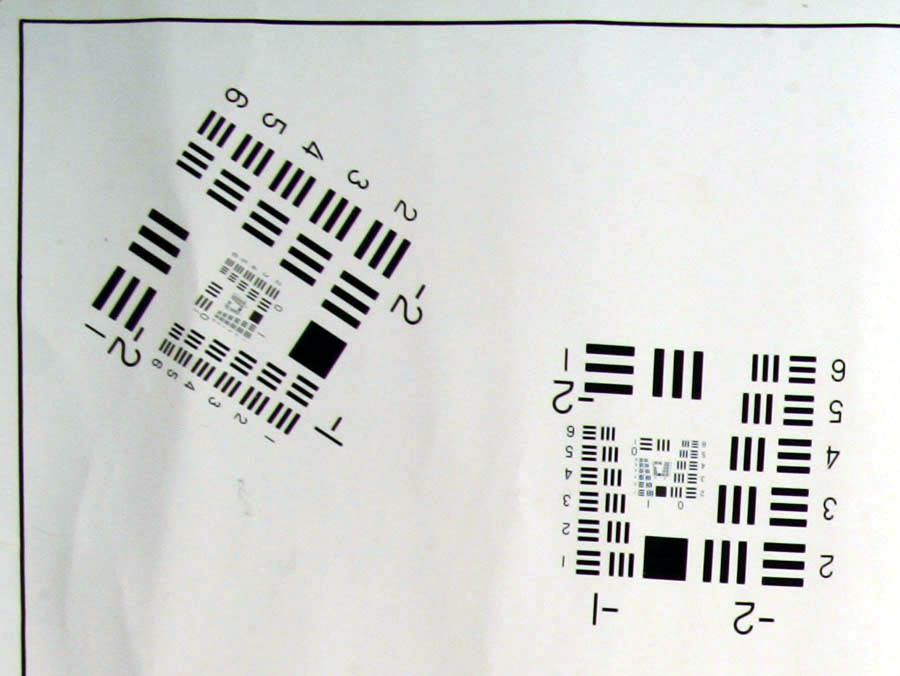

at 20mm on Edmund Scientific Lens Resolution Chart
centers are sharp at f/2.8.
Image corners and edges are mildly soft
at f/2.8 and progressively sharpen to peak sharpness at f/8. Image quality
in the corners is very good by f/5.6. Corner image sharpness drops off
slightly at f/16. See vignetting, linear distortion and lateral chromatic
aberration summaries at f/11 below.
16mm
Examples
at 16mm on Edmund Scientific Lens Resolution Chart
centers are sharp at f/2.8.
Image corners and edges are very soft at
f/2.8 and progressively sharpen to peak sharpness at f/11. Image quality
in the corners is very good by f/5.6. Corner image sharpness drops off
slightly at f/16. See vignetting, linear distortion and lateral chromatic
aberration summaries at f/11 below.
Corner Sharpness at f/11
Focal Length or Equivalent | EF 16-35mm f/2.8L | EF 17-40mm f.4L | EF-S 10-22mm f/3.5-4.5 and 20D |
16mm | Mildly soft | Soft | |
17mm | Sharp | Very Sharp | Mildly soft |
20mm | Sharp | Very Sharp | Mildly soft |
24mm | Sharp | Sharp | Soft |
35mm | Sharp | Sharp | Mildly soft |
Linear Distortion at f/11
Focal Length or Equivalent | EF 16-35mm f/2.8L | EF 17-40mm f.4L | EF-S 10-22mm f/3.5-4.5 and 20D |
16mm | Moderate barrel | Mild barrel | |
17mm | Moderate barrel | Moderate barrel | Mild barrel |
20mm | Minimal barrel | Minimal barrel | No distortion |
24mm | Negligible distortion | Negligible distortion | Negligible distortion |
35mm | Mild pincushion | Mild pincushion | Mild pincushion |
Chromatic Aberration at f/11
Focal Length or Equivalent | EF 16-35mm f/2.8L | EF 17-40mm f.4L | EF-S 10-22mm f/3.5-4.5 and 20D |
16mm | Moderate CA | Mild CA | |
17mm | Mild CA | Minimal CA | Mild CA |
20mm | Minimal CA | Negligible CA | Minimal CA |
24mm | Minimal CA | Negligible CA | Minimal CA |
35mm | Negligible CA | Negligible CA | Negligible CA |
Vingetting at f/11
Focal Length or Equivalent | EF 16-35mm f/2.8L | EF 17-40mm f.4L | EF-S 10-22mm f/3.5-4.5 and 20D |
16mm | Moderate | Mild | |
17mm | Moderate | Moderate | Mild |
20mm | Negligible | Negligible | None |
24mm | Mild | Negligible | Negligible |
35mm | None | None | None |
50% MTF at f/11 Field Center (Field
Edge) lp/mm
Data determined using Koren 2003 lens test
chart.
Focal Length or Equivalent | EF 16-35mm f/2.8L | EF 17-40mm f.4L | EF-S 10-22mm f/3.5-4.5 and 20D |
16mm | 71.0 (71.5) | 64.75 (64.75) | |
17mm | 71.0 (70.75) | 72.5 (71.0) | 64.9 (64.0) |
20mm | 70.85 (70.85) | 70.75 (69.25) | 64.6 (63.5) |
24mm | 69.5 (70.75) | 70.85 (69.5) | 64.8 (64.5) |
35mm | 70.75 (70.75) | 70.85 (69.0) | 63.75 (64.60) |

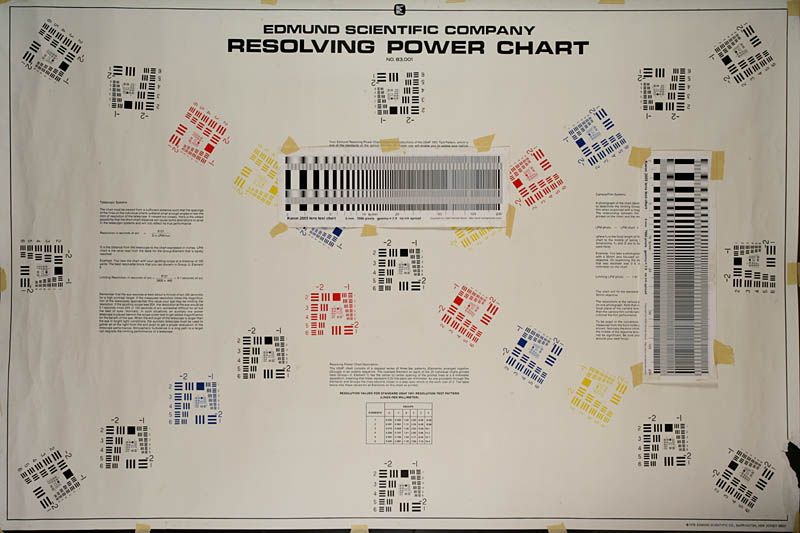

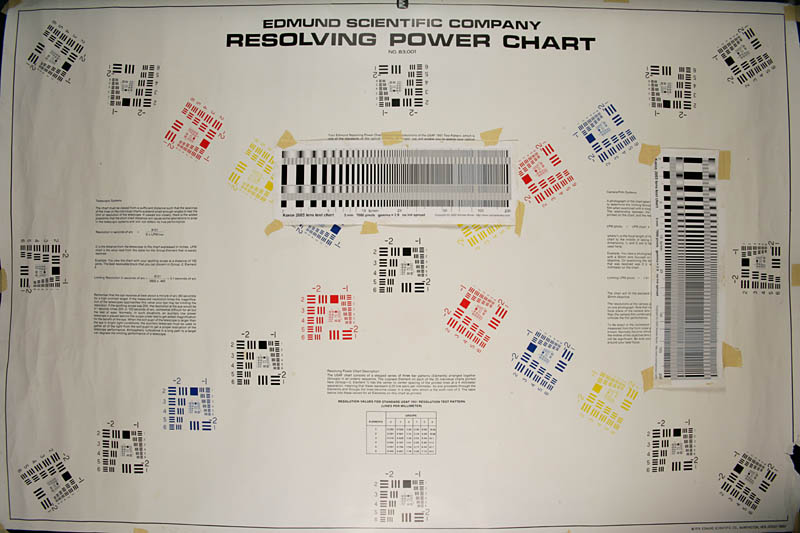

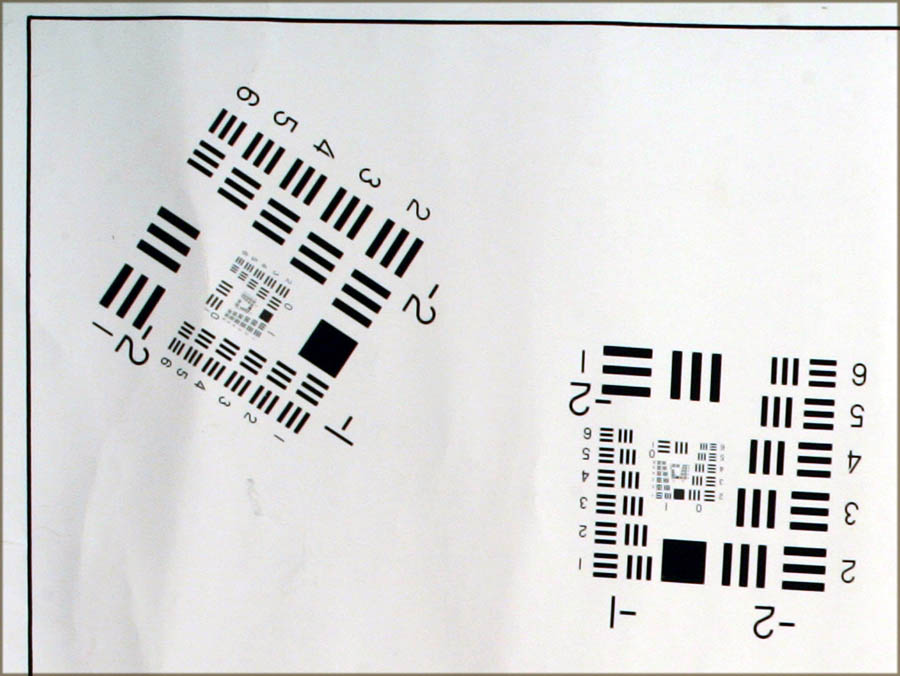

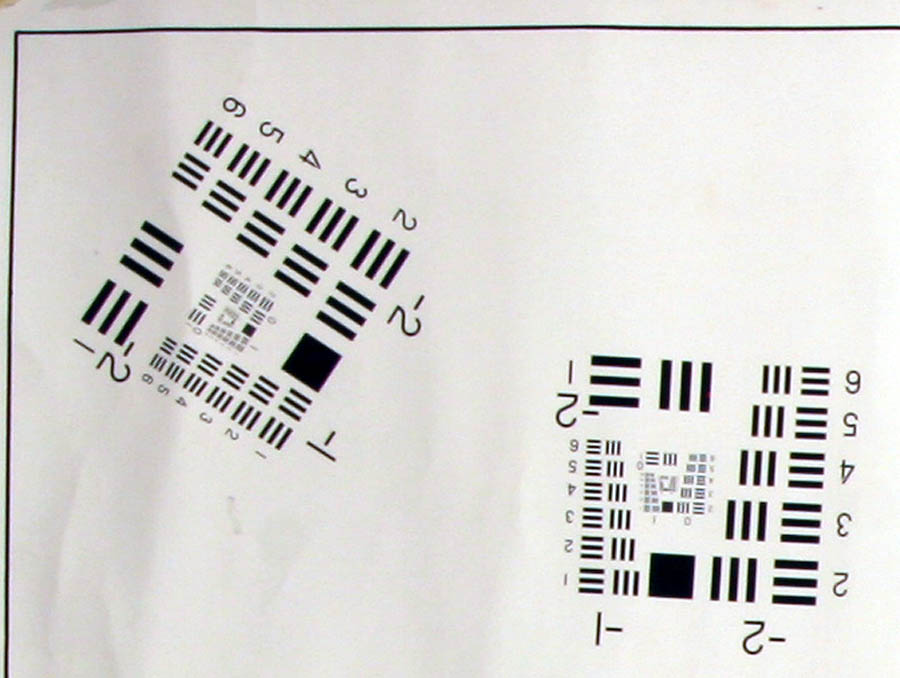

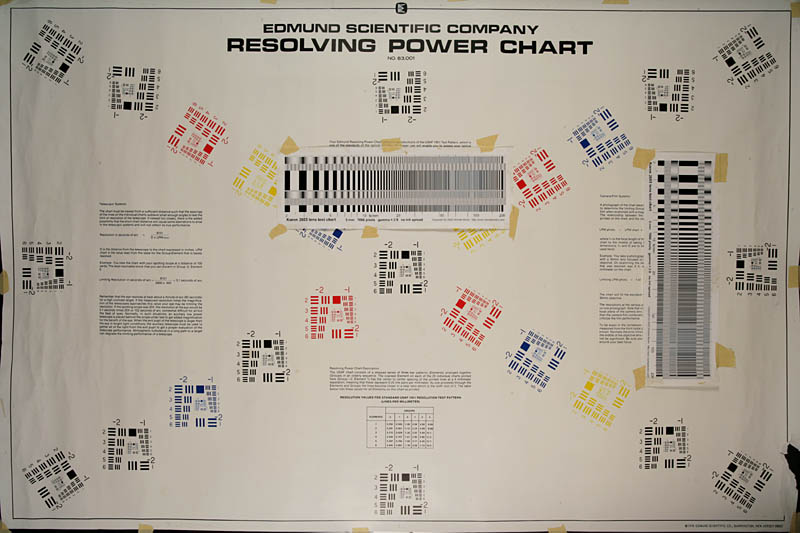

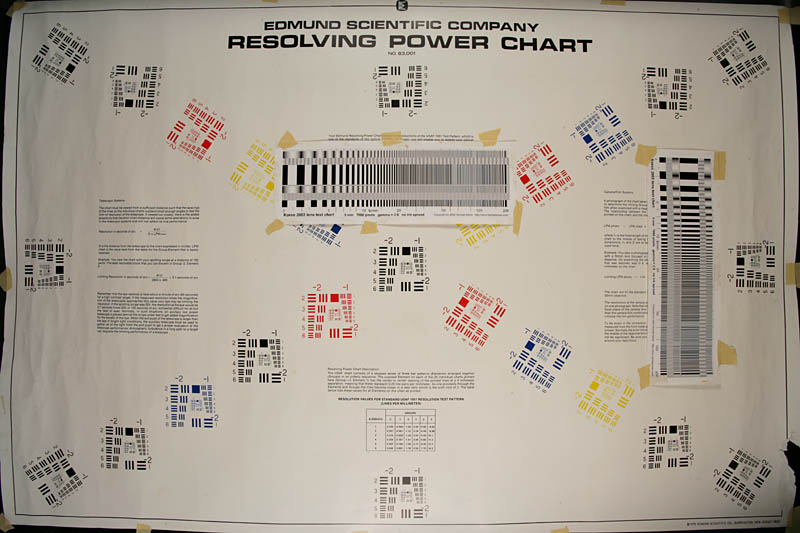

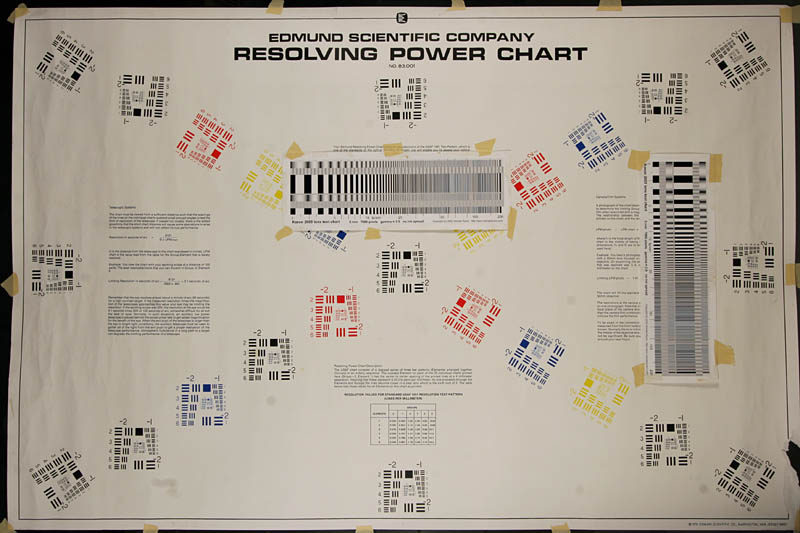

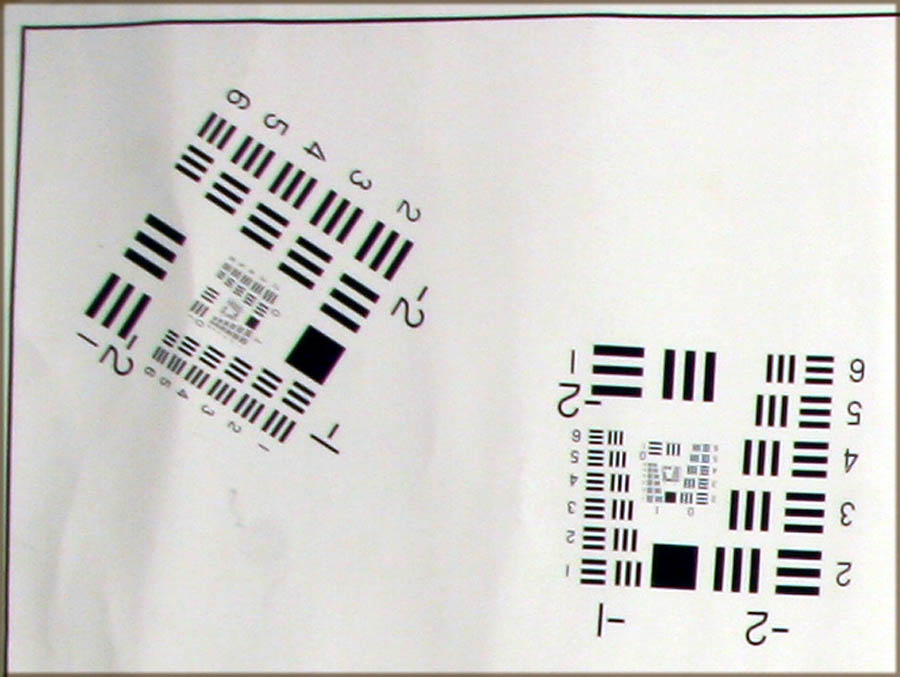

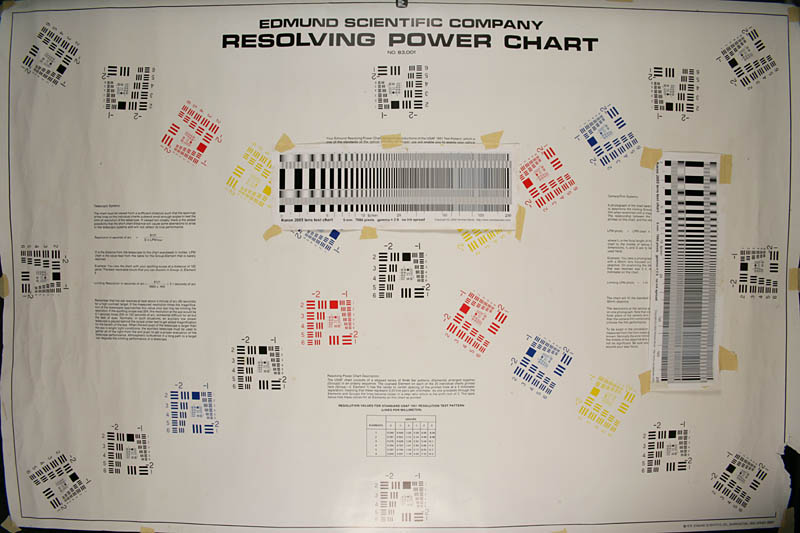

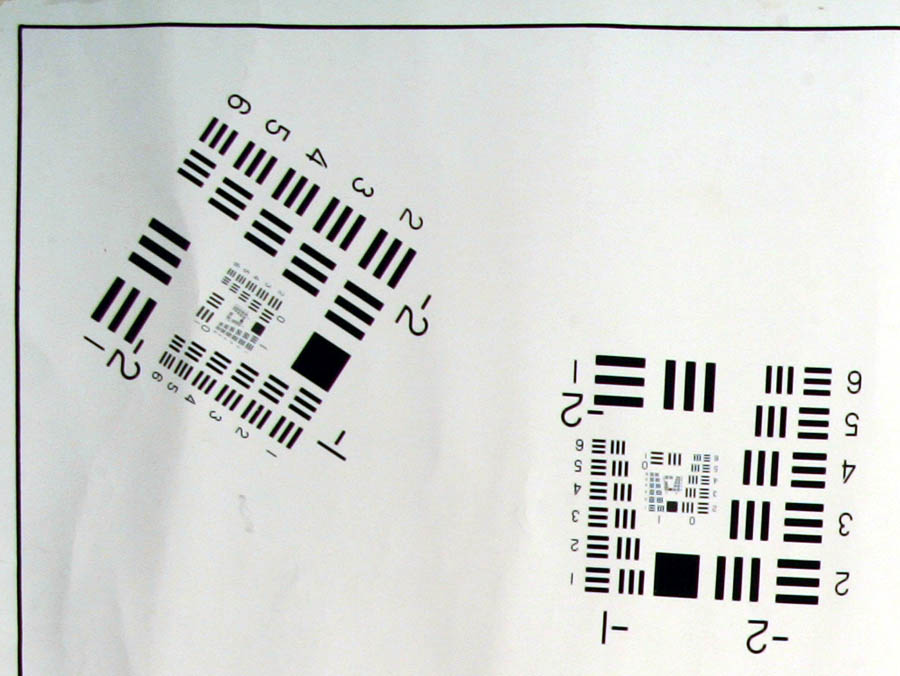

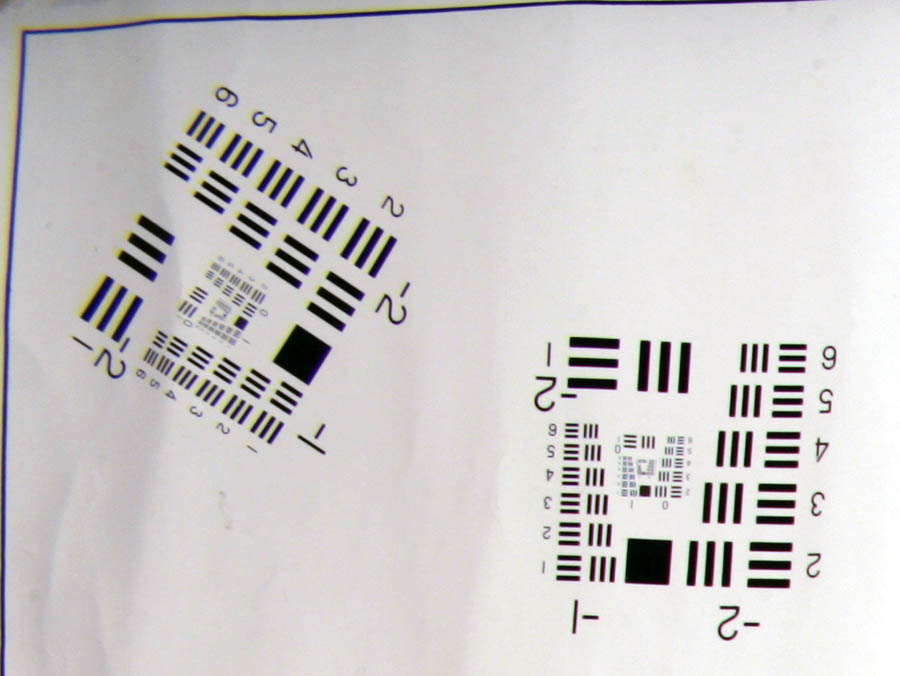

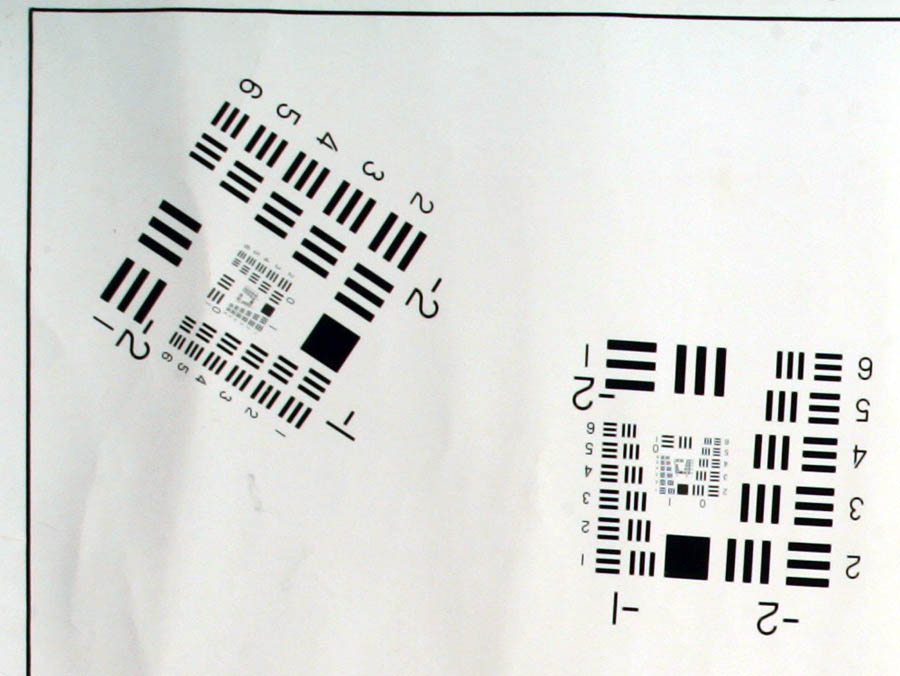

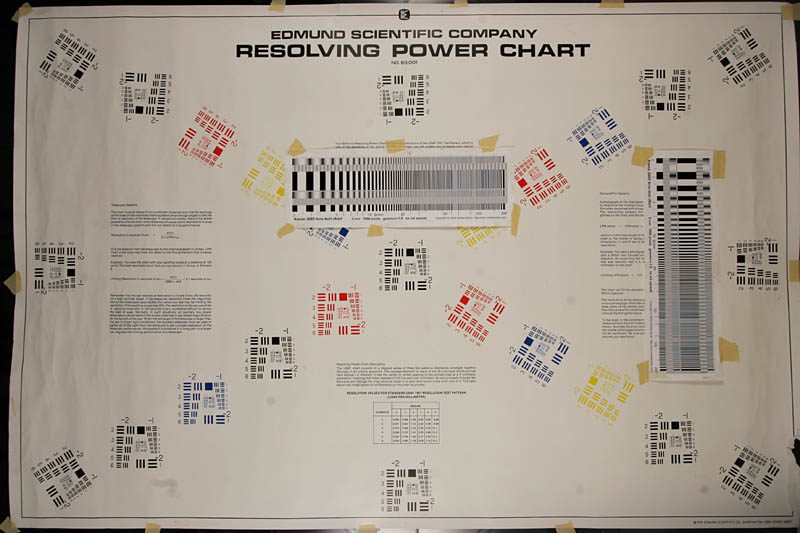

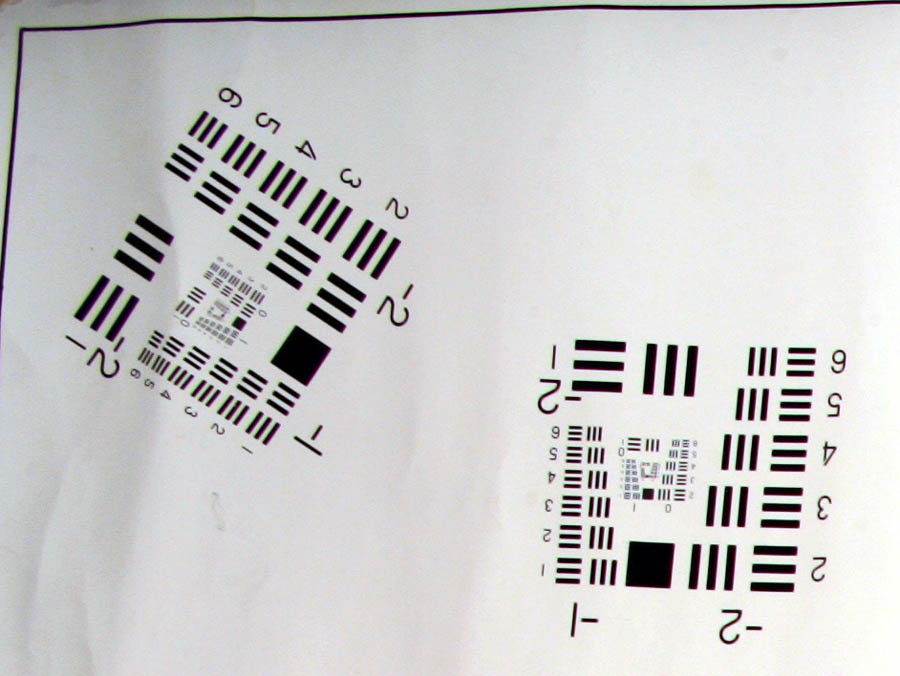

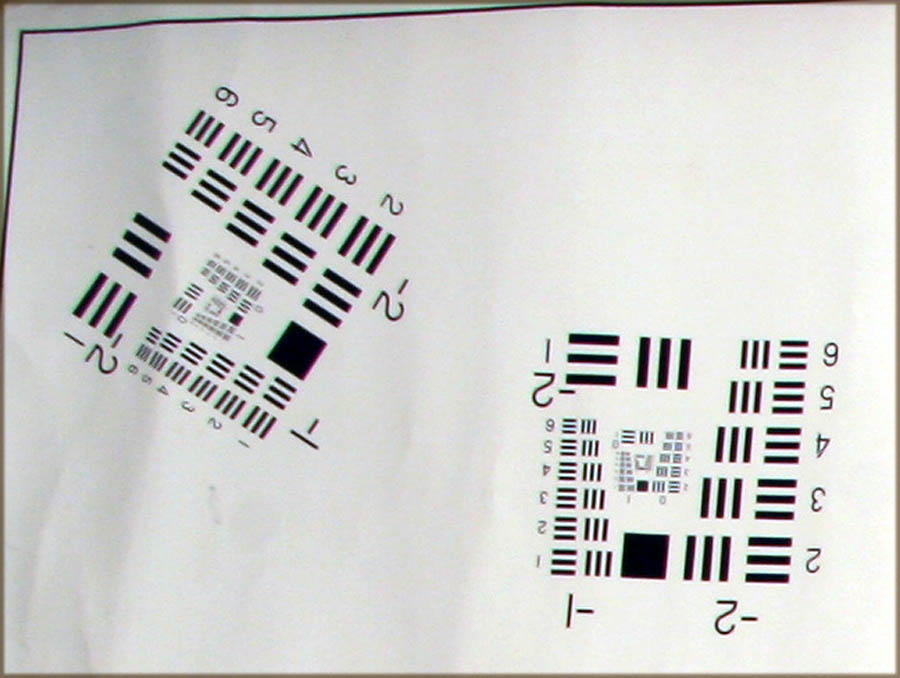

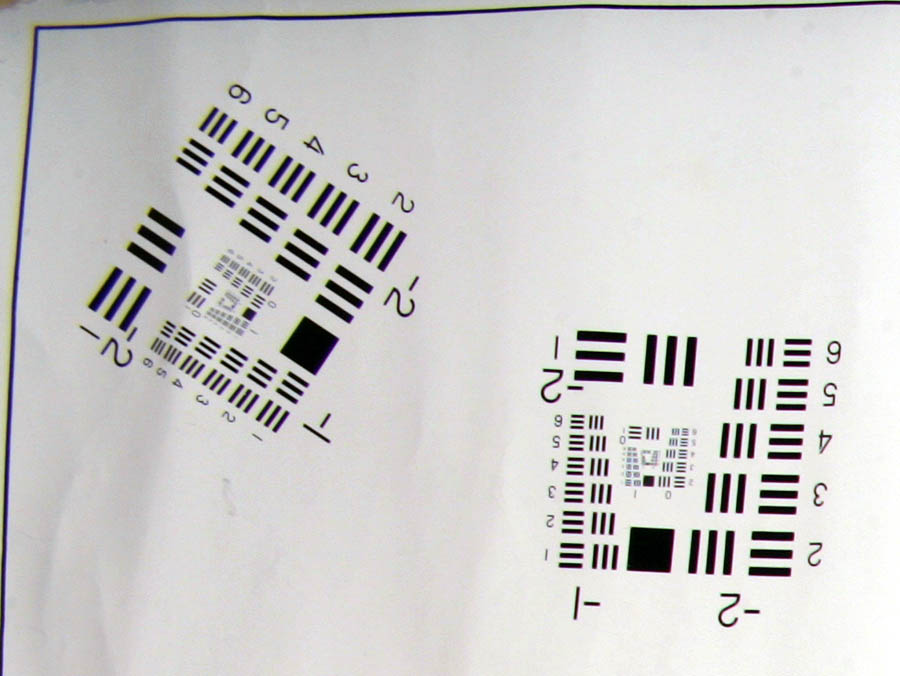

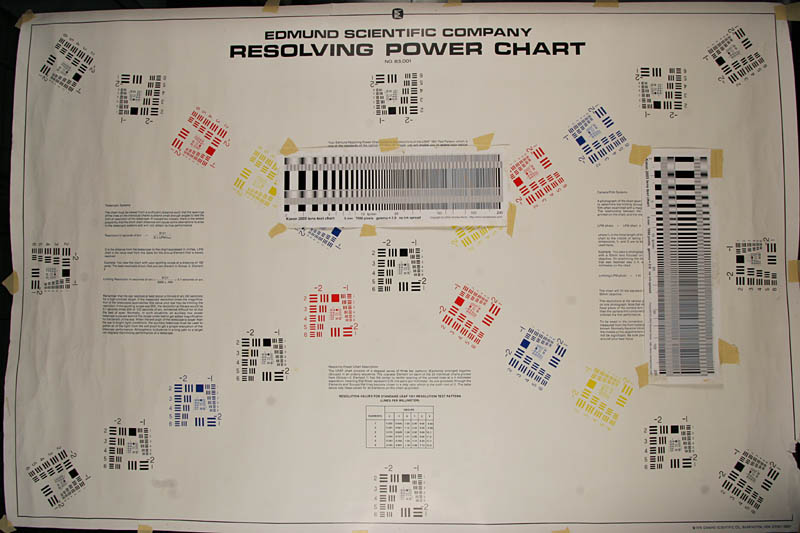

Field Comparisons at f/16 of EF 16-35mm @ 16mm, of EF 17-40mm @ 17mm with EOS-1Ds MkII and EF-S 10-22mm @ 10mm with 20D
Field of View | |
Corner Sharpnessness | |
Center Sharpness |
Room Test with EOS-5D and EF 16-35mm f/2.8L @ 16mm and @ f/2.8, f/4 and f/5.6 (handheld)
©
2006, William L. Castleman
Initially
posted 18 June, 2006, updated 20 June, 2006
