Methods for Measuring Resolution and 50% MTF

Resolution

Resolution tests were run at 28.4 inches from the target. An Edmund Scientific lens resolution chart was illuminated with a monolight flash adjusted with a flash meter at each aperture exposure. The camera and lenses were mounted on a Bogen 3033/Arca Swiss B1 tripod/head combination. Three exposures at 1/250th second were taken at each aperture with an EOS-1v via cable shutter release on Kodak Technical Pan film rated at ISO 25 and developed in Technidol. The central autofocus point was centered over the center pattern for each exposure. No focus bracketing was used. In previous tests, it was determined that camera autofocus function yielded consistently higher line pairs per mm scores than trying to use manual focus and bracketing with an eyepiece magnifier. The lens was manually defocused, and then refocused using autofocus for each exposure. Line patterns were read under a compound brightfield microscope at a magnification of 40X.

Measurement were made at the center pattern, a middle pattern, and the far upper right pattern on the four exposures. The highest resolution score for each aperture was recorded for data in the center-weighted resolution graph. Center-weighted resolution was calculated (60% center; 30% middle; 10% edge). Resolutions at each f/stop were calculated using the method on the chart as follows.

Image lines pairs per mm (image lpm or lp/mm) = lpm resolved on chart X (D-fo) / fo) where fo = focal length of lens and D = Distance from the chart to the middle of the lens.

50% MTF (modulation transfer function):

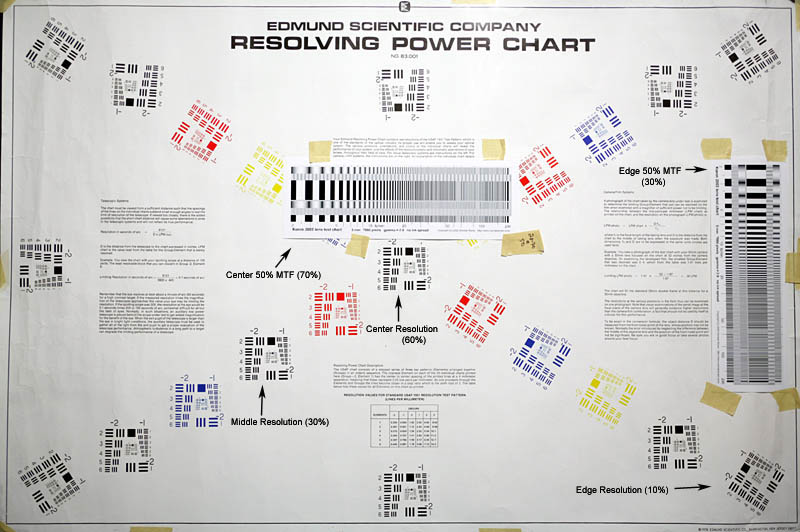

There is general agreement that perceived image sharpness is more closely related to the spatial frequency (lp/mm) where MTF is 50% (i.e., where contrast has dropped by half) than to resolution alone. I used the Koren 2003 lens test chart developed and explained by Norman Koren to calculate 50% MTF. Printed test charts were placed on the Edmund Scientific Test Chart as in the middle and edge of the chart as shown here. The chart was photographed under tungsten bulb lighting. A Canon EOS-1Ds Mark II was set at ISO 100, tungsten bulb white balance and shot with + 1.3 EV using evaluative metering with the camera set for mirror lockup. Raw files were converted to 300 dpi tifs with Capture One Pro v. 3.6. Measures of 50% MTF were calculated using the central chart and edge chart. Calculated values were center weighted (60% center; 30% edge.)


The imaged sine patterns were analyzed withand measurements were made on the resulting Plot Profile to determine line pair per mm frequency of 50% contrast as explained in detail on the Norman Koren website.

Details of calculating 50% MTF:

1. The 5mm Koren 2003 lens test chart designed to be printed at 25 cm long (50X magnification) was downloaded from the Koren website and printed on semi-gloss paper with a Epson 1270 printer at 1440 dpi. Charts are trimmed and mounted on the Edmund Scientific Test Chart as shown:



2. The chart is photographed at a working distance that is 1/2 the recommended distance so that the entire Edmund Scientific chart can be photographed for resolution and determination of 50% MTF. It is also possible to detect lateral chromatic and other aberrations from the same test images. The distance from the chart was calculated at d1=(M+1)f where d1 = lens to target distance (mm) and f = lens focal length (mm) and M=25. The reduction of distance by 1/2 requires that lp/mm figures read off the chart be adjusted by 1/2.

3. Photographic RAW files are converted to tifs with Capture One Pro. The tif files are opened in image analysis software to analyze the sine patterns on the chart (top band). I used ImageJ software, public domain software off the NIH site.



Click on "File" and then "Open" to select and open the tif of interest.

4. Click on the "magnifying cursor symbol" to fill the window with the Koren chart image and click on the "hand" icon to move the chart image into the middle of the window.

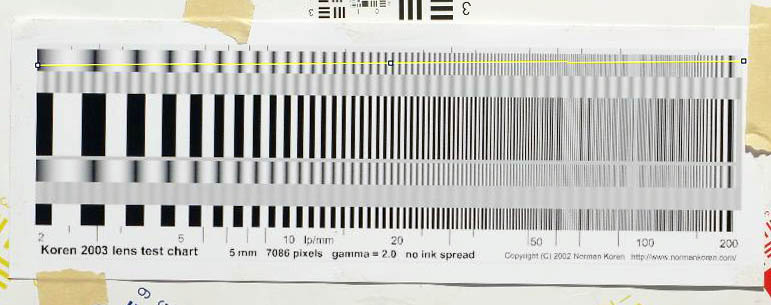

5. Click on the line icon and draw a straight line through the upper sine pattern bar on the Koren chart.



6. Click on the "Analyze" menu and select "set scale" and enter "known distance" as "25" and "units" as "cm".

7. Click on "Analyze" again and select "Plot Profile."

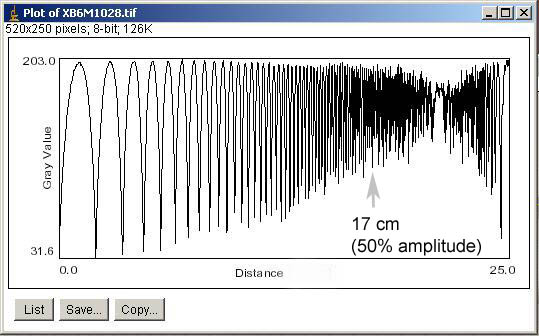

8. A sine wave pattern will be generated and displayed.

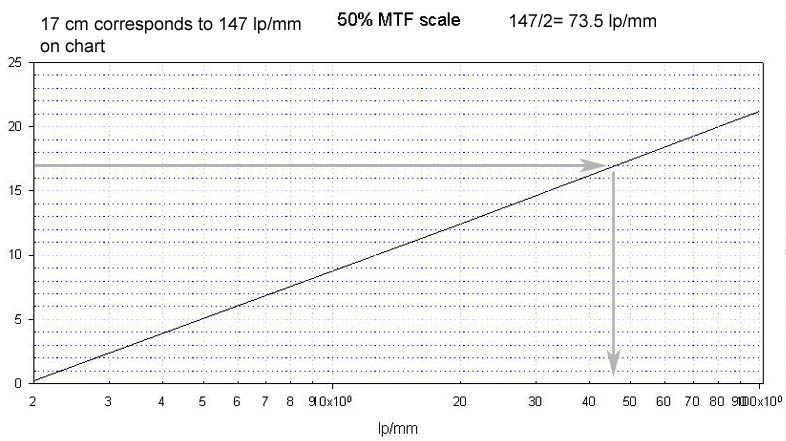

9. The full amplitude of the sine wave on my computer screen has a 7 cm sweep. I just take a rule and run it down the plot towards 25cm until the amplitude is 50% (3.5 cm). In the example, 50% amplitude is at 17 cm on the chart. This corresponds on a plot of cm of chart versus a log plot of spatial frequency below to 147 lp/mm.



10. Because the working distance was decreased by 1/2 when photographing the chart, the lp/mm value is divided by 2 to generate the 50% MTF value.
